SampleMenu — FireMonkey Screen Manager Framework
Delphi FMX | Windows 1024x768
================================================== ===========================
FILES
-----
SampleMenu.dpr — Main project
MainForm.pas — Single form (no DFM, everything in code)
class_screen.pas — TScreenManager + TGameScreen (adapted for FMX)
screens.pas — All game scenes
global.pas — Scene constants and shared variables
SCENES
------
SCREEN_LOGO_DEV ($0001) — Developer Studio logo (2s, F to skip)
SCREEN_LOGO_PUB ($0002) — Distributor logo (2s, F to skip)

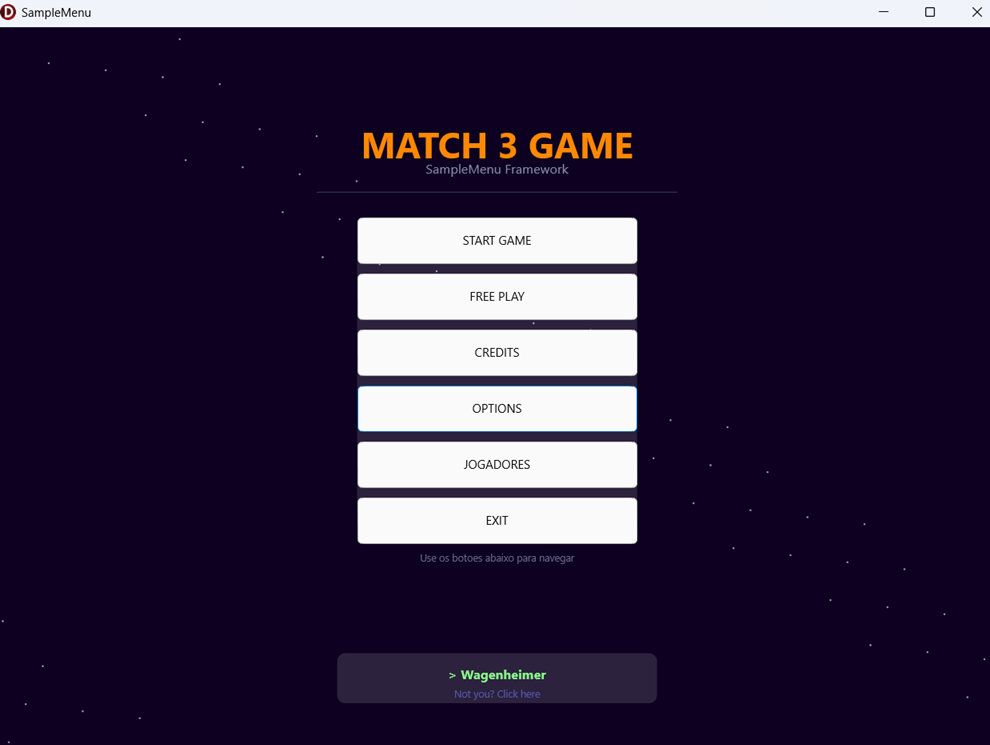

SCREEN_MENU ($0003) — Main menu with FMX buttons
SCREEN_LEVELMAP ($0004) — 100-level map (snake-style winding path)
SCREEN_GAME ($0005) — Match3 game placeholder
FLOW
----
LogoDev → LogoPub → Menu
├─ Start Game → LevelMap → Game
├─ Free Play → Game (level 1)
├─ Credits → Dialog
├─ Options → Dialog
└─ Exit → Closes app
CONTROLS
--------
Logos: F = skip scene
Menu: ESC = quit
LevelMap: ← → or A D = navigate levels
Enter = play selected level
ESC = back to menu
Game: ESC = back to map
ARCHITECTURE
------------
- No DFM: all components created in code inside DoCreate
- FMX Canvas injected into TScreenManager every frame in OnPaint
- FMX buttons overlaid on TPaintBox, visible only on SCREEN_MENU
- Native FMX double buffering (no manual bitmap required)
- Delta time via Now * 86400 (seconds of the day)
HOW TO EXPAND
-------------
1. Add a new scene in screens.pas inheriting from TGameScreen
2. Register the constant in global.pas
3. Call FScreenManager.Add(...) in MainForm's DoCreate
4. Use ExitScreen(SCREEN_NEW) to navigate to it
================================================== ===========================
In attach how to handle multiple scenes and just one Form(Firemonkey) on Delphi.
SampleMenu — FireMonkey Screen Manager Framework
Delphi FMX | Windows 1024x768
================================================== ===========================
FILES
-----
SampleMenu.dpr — Main project
MainForm.pas — Single form (no DFM, everything in code)
class_screen.pas — TScreenManager + TGameScreen (adapted for FMX)
screens.pas — All game scenes
global.pas — Scene constants and shared variables
SCENES
------
SCREEN_LOGO_DEV ($0001) — Developer Studio logo (2s, F to skip)
SCREEN_LOGO_PUB ($0002) — Distributor logo (2s, F to skip)
SCREEN_MENU ($0003) — Main menu with FMX buttons
SCREEN_LEVELMAP ($0004) — 100-level map (snake-style winding path)
SCREEN_GAME ($0005) — Match3 game placeholder
FLOW
----
LogoDev → LogoPub → Menu
├─ Start Game → LevelMap → Game
├─ Free Play → Game (level 1)
├─ Credits → Dialog
├─ Options → Dialog
└─ Exit → Closes app
CONTROLS
--------
Logos: F = skip scene
Menu: ESC = quit
LevelMap: ← → or A D = navigate levels
Enter = play selected level
ESC = back to menu
Game: ESC = back to map
ARCHITECTURE
------------
- No DFM: all components created in code inside DoCreate
- FMX Canvas injected into TScreenManager every frame in OnPaint
- FMX buttons overlaid on TPaintBox, visible only on SCREEN_MENU
- Native FMX double buffering (no manual bitmap required)
- Delta time via Now * 86400 (seconds of the day)
HOW TO EXPAND
-------------
1. Add a new scene in screens.pas inheriting from TGameScreen
2. Register the constant in global.pas
3. Call FScreenManager.Add(...) in MainForm's DoCreate
4. Use ExitScreen(SCREEN_NEW) to navigate to it
================================================== ===========================
In attach how to handle multiple scenes and just one Form(Firemonkey) on Delphi.
